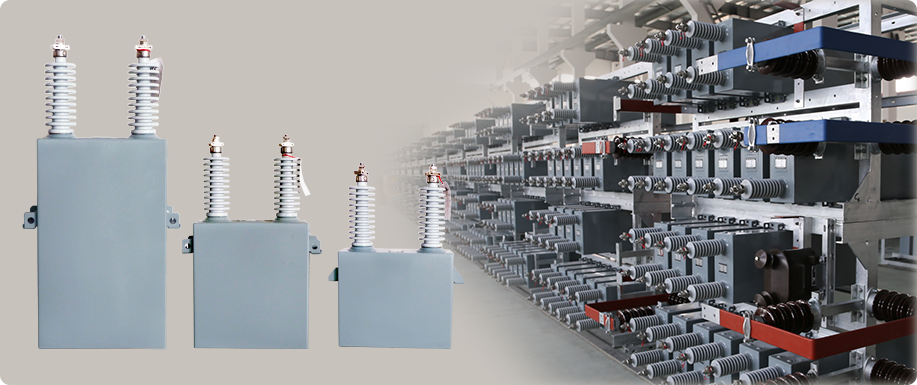

一、产品用途

高压并联电容器主要用于工频电力系统提高功率因素，增加输电能力，降低线路损耗，提高电能质量。

The use of the products :

The high voltage shunt capacitor is mainly used for power system to provide the reactive power, increase transmission the line loss and improve the quality of electric energy.·

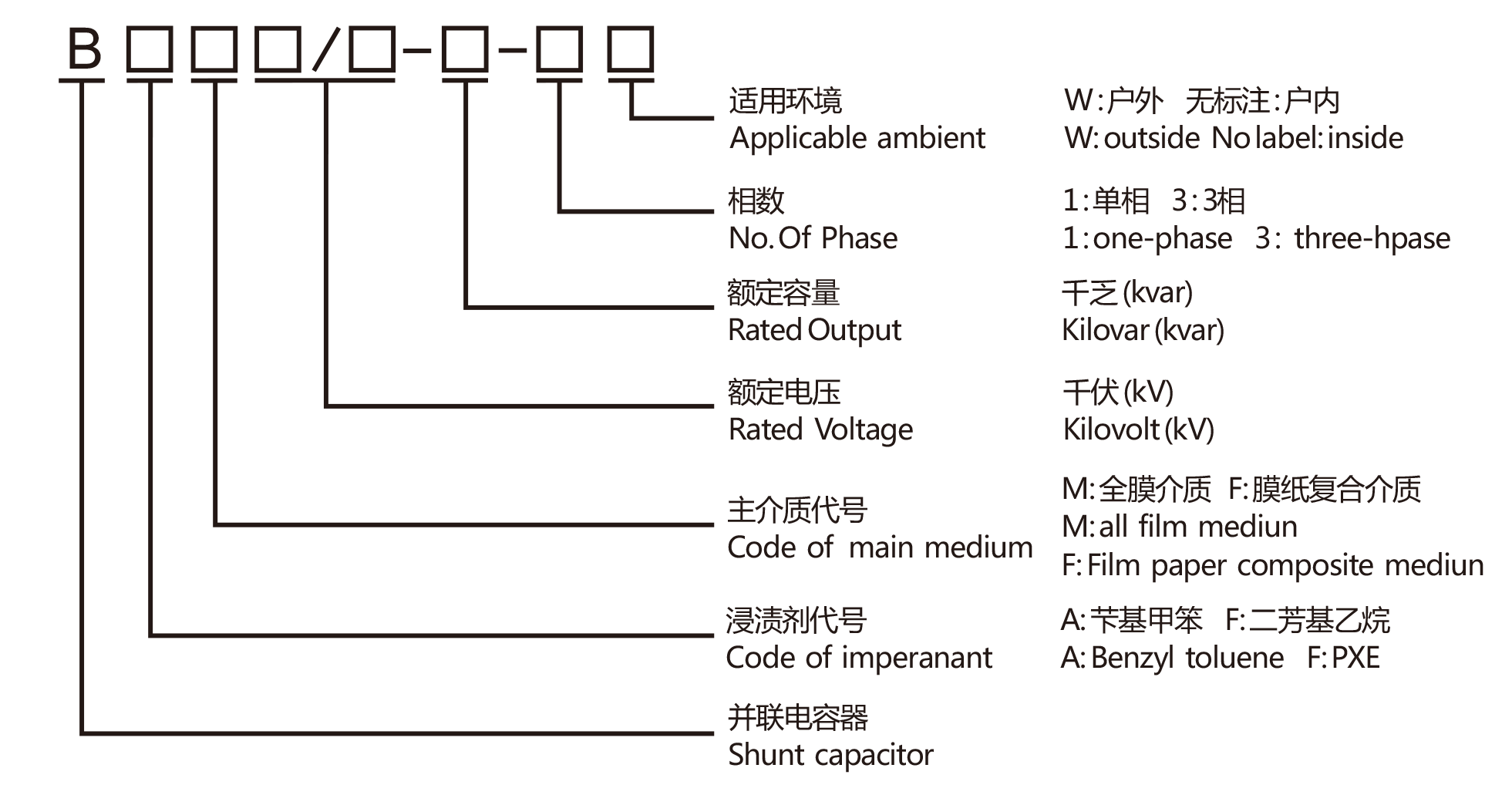

二、型号含义：Ⅱ

Meaning of the model :

三、运行环境

1、运行地点海拔不超过2000m；★

2、环境温度-40~+45℃； ★

3、环境相对湿度不高于

4、污秽等级Ⅳ（泄露比距大于3.1cm/kV）；

5、安装地点无剧烈震动，无有害气体、蒸汽、无导电性、爆炸性尘埃粒子；

6、安装在户内时应有良好的通风；

★：超过此值应在订货时特别提出

Ⅲ、The operating environment:

1、Altitude in service not exceeding 2000m；★

2、Ambient temperature is between the range of -40~+45℃ ★

3、Relative humidity of environment is not higher than 85 %( in 20±5℃)

4、Pollution class Ⅳ（Leakage distance is larger than 3.1cm/kV）

5、There is no fierce vibrating, noxious gas, the steam, and conductive and explosive dust particle in the installation sites.

6、Installation site is well-ventilated if indoor.

★Proposal should be proposed before ordering when surpassing this value.

四、主要技术性能

1、容量偏差-3~+5%；

2、电容器在工频交流额定电压下，20℃时其损耗角正切值（tgδ）不大于0.03%；

3、允许在1.05倍工频稳态电压下长期运行，在1.1倍工频稳态电压下每24小时运行不超过8小时；

4、允许在过电压及高次谐波造成的有效值为额定电流1.3倍的稳态过电流下长期运行，对于具有最大正偏差容量的电容器，过电流允许有效值应不超过1.43倍；

5、本产品符合GB/T11024.1-2010 和 IEC60871-1:2005《标称电压1kV以上交流电力系统用并联电容器》及DL/T840-2003《高压并联电容器使用技术条件》标准之规定。

Ⅳ.The main technical performance

1.Capacity deviation -3~+5%.

2.For AC rated voltage the loss angle tangent value of capacitors is no more than 0.03% at 20℃.

3.Capacitors permit voltage up to 1.05Un for a long time in the power frequency stable state. Under the condition of 1.1Un power frequency stable state, capacitors should not be used for more than 8 hours every 24 hours.

4.It is permitted capacitors run on the effective value 1.3In stable state, created by overvoltage and the higher harmonic, for a long time. For capacitors with the largest positive deviation capacity, the allowable overcurrent should not exceed 1.43In on the effective value

5.This product complies with the standard of GB/T11024.1-2010 and IEC60871-1:2005《Shunt capacitors for AC power system having a rated voltage above 1000V---part 1:General》and DL/T840-2003《Technical specification of high voltage shunt capacitor》.

五、产品结构及特点

1、电容器主要由外壳、高强度压接式套管、芯子组成；

2、外壳采用优质不锈钢整体成型，并采用氩弧焊焊接，保证产品具有良好的密封性能及耐爆性能；

3、采用高强度压接式瓷套，可生物降解（非PCB）的较高绝缘强度的液体介质作为浸渍剂，保证产品在低温环境下良好运行；

4、元件采用优质聚丙烯薄膜和超薄铝箔，铝箔折边和凸箔结构改善了极板边缘效应，因此改善了电容器的局部放电水平；

5、产品内设有可靠性高的玻璃釉放电电阻，可使电容器在从断开电源后从√2Un的初始峰值电压在10min内放电到75V以下；

6、有内熔丝的并联电容器，内熔丝设置在元件之间，在有效隔离故障元件同时，保证完好元件正常运行，产品的可靠性更高；

7、产品中的元件在超净化状态下卷制，浸渍工艺采用了群抽单注点滴式注油工艺，使产品具有低损耗、低局放、寿命长的特点。

Ⅴ.Structure and characteristics of the products：

1.The  capacitor  is  mainly  composed  of  a case, high  strength  of  the  crimping  bushing  and  a  core.

2.The case, made of good  quality  stainless  steel  molding,  is  made  by  argon  arc  welding  to  ensure  that  the  product  has  a  good  tightness  and  high  explosion  stability. can run  well  in  low  temperature  environment.

4.Elements  are  made  up  of  high-quality  polypropylene  film  and  ultra-thin  aluminum  foil.  Folding  and  convex  aluminum  foil  structure  improves  the  plate  edge  effect.  So  the  partial  discharge  characteristics  of  capacitors  are  improved.

5.The  product  is  equipped  with  glass  glaze  film  discharge  resistor  which  is  very  reliable  and  can  reduce  the  voltage  from  the  initial  peak  voltage  of √2Un  to  below  75V  in  10  minutes  after  the  power  is  cut off.

6.The  shunt  capacitor  with  built-in  fuse  which  is  arranged  between  the  elements  can  ensure  the  intact  elements  operate  normally  when  isolating  the  faulty  elements effectively  at  the  same  time.  Then  products can  be  with  higher  reliability.

7.The  elements  of  products  are  rolled  in  the  ultra  clean  state.  Cluster  pumping  single  note  drip  impregnanting  technology  is  used  for  impregnation  process  which  makes  the  products  have  the  characteristics  of  low  loss,  low  magnitude  of  partial  discharge  and  long  service life.

表一：内熔丝高压并联电容器

Table 1:Internally fused for high voltage shunt capacitor

序号 ID	型号 Model	额定电压 Rated voltage （kV）	额定容量 Rated Output （kvar)	额定电容 Rated Capacitance （μF)	重量 Weight （kg)	H1 (mm)	H2 (mm)	H3 (mm)	W (mm)	图号 No. of dimensional drawing
1	BAM1.05-100-1W	1.05	100	288.7	34	375	110	685	140	Fig. 2
2	BAM1.05-200-1W	1.05	200	577.4	54	535	110	845	170	Fig.1
3	BAM2.1-100-1W	2.1	100	72.2	28	310	110	620	140	Fig.2
4	BAM2.1-200-1W	2.1	200	144.4	44	425	110	735	170	Fig.1
5	BAM3.15-100-1W	3.15	100	32.1	28	310	110	620	140	Fig.2
6	BAM3.15-200-1W	3.15	200	64.2	44	425	110	735	170	Fig.1
7	BAM3.15-300-1W	3.15	300	96.2	59	590	235	900	170	Fig.1
8	BAM3.15-334-1W	3.15	334	107.1	69	645	265	955	170	Fig.1
9	BAM6.6/√3-100-1W	6.6/√3	100	21.9	28	310	110	620	140	Fig.2
10	BAM6.6/√3-200-1W	6.6/√3	200	43.9	42	410	110	720	170	Fig.1
11	BAM6.6/√3-334-1W	6.6/√3	334	73.3	62	630	265	940	170	Fig.1
12	BAM6.6/√3-400-1W	6.6/√3	400	87.7	72	735	300	1045	170	Fig.1
13	BAM6.6/√3-500-1W	6.6/√3	500	109.7	80	820	350	1130	190	Fig.1
14	BAM7.2/√3-100-1W	7.2/√3	100	18.4	28	310	110	620	140	Fig.2
15	BAM7.2/√3-200-1W	7.2/√3	200	36.8	42	410	110	720	170	Fig.1
16	BAM7.2/√3-334-1W	7.2/√3	334	61.5	62	630	265	940	170	Fig.1
17	BAM7.2/√3-400-1W	7.2/√3	400	73.7	72	735	300	1045	170	Fig.1
18	BAM7.2/√3-500-1W	7.2/√3	500	92.1	80	820	350	1130	190	Fig.1
19	BAM11/√3-200-1W	11/√3	200	15.8	43	410	110	720	170	Fig.1
20	BAM11/√3-300-1W	11/√3	300	23.7	57	565	235	875	170	Fig.1
21	BAM11/√3-334-1W	11/√3	334	26.4	61	615	265	925	170	Fig.1
22	BAM11/√3-400-1W	11/√3	400	31.6	71	720	300	1030	170	Fig.1
23	BAM11/√3-500-1W	11/√3	500	39.5	87	805	350	1115	190	Fig.1
24	BAM11/√3-600-1W	11/√3	600	47.4	101	945	400	1255	190	Fig.1
25	BAM12/√3-200-1W	12/√3	200	13.26	43	410	110	720	170	Fig.1
26	BAM12/√3-300-1W	12/√3	300	19.9	58	580	235	890	170	Fig.1
27	BAM12/√3-334-1W	12/√3	334	22.2	63	630	265	940	170	Fig.1
28	BAM12/√3-400-1W	12/√3	400	26.5	72	735	300	1045	170	Fig.1
29	BAM12/√3-500-1W	12/√3	500	33.2	89	825	350	1135	190	Fig.1
30	BAM12/√3-600-1W	12/√3	600	39.8	104	970	400	1280	190	Fig.1
31	BAM11/2-334-1W	11/2	334	35.2	64	640	265	950	170	Fig.1
32	BAM11/2-417-1W	11/2	417	43.9	79	720	300	1030	190	Fig.1
33	BAM11/2-500-1W	11/2	500	52.6	91	840	350	1150	190	Fig.1
34	BAM12/2-334-1W	12/2	334	29.5	64	640	265	950	170	Fig.1
35	BAM12/2-417-1W	12/2	417	36.9	79	720	300	1030	190	Fig.1
36	BAM12/2-500-1W	12/2	500	44.2	91	840	350	1150	190	Fig.1
37	BAM11-417-1W	11	417	11.0	79	720	300	1030	190	Fig.1
38	BAM11-500-1W	11	500	13.2	91	840	350	1150	190	Fig.1
39	BAM11-600-1W	11	600	15.8	106	990	400	1300	190	Fig.1
40	BAM12-417-1W	12	417	9.2	79	720	300	1030	190	Fig.1
41	BAM12-500-1W	12	500	11.1	91	840	350	1150	190	Fig.1
42	BAM12-600-1W	12	600	13.3	106	990	400	1300	190	Fig.1
43	BAM3.46-167-1W	3.46	167	44.403	39	505	110	735	140	Fig.2

序号 ID	型号 Model	额定电压 Rated voltage （kV）	额定容量 Rated Output （kvar)	额定电容 Rated Capacitance （μF)	重量 Weight （kg)	H1 (mm)	H2 (mm)	H3 (mm)	W (mm)	图号 No. of dimensional drawing
201	BFM1.05-100-1W	1.05	100	288.7	34	375	110	685	140	Fig. 2
202	BFM1.05-200-1W	1.05	200	577.4	54	535	110	845	170	Fig.1
203	BFM2.1-100-1W	2.1	100	72.2	28	310	110	620	140	Fig.2
204	BFM2.1-200-1W	2.1	200	144.4	44	425	110	735	170	Fig.1
205	BFM3.15-100-1W	3.15	100	32.1	28	310	110	620	140	Fig.2
206	BFM3.15-200-1W	3.15	200	64.2	44	425	110	735	170	Fig.1
207	BFM3.15-300-1W	3.15	300	96.2	59	590	235	900	170	Fig.1
208	BFM3.15-334-1W	3.15	334	107.1	69	645	265	955	170	Fig.1
209	BFM6.6/√3-100-1W	6.6/√3	100	21.9	28	310	110	620	140	Fig.2
210	BFM6.6/√3-200-1W	6.6/√3	200	43.9	42	410	110	720	170	Fig.1
211	BFM6.6/√3-334-1W	6.6/√3	334	73.3	62	630	265	940	170	Fig.1
212	BFM6.6/√3-400-1W	6.6/√3	400	87.7	72	735	300	1045	170	Fig.1
213	BFM6.6/√3-500-1W	6.6/√3	500	109.7	80	820	350	1130	190	Fig.1
214	BFM7.2/√3-100-1W	7.2/√3	100	18.4	28	310	110	620	140	Fig.2
215	BFM7.2/√3-200-1W	7.2/√3	200	36.8	42	410	110	720	170	Fig.1
216	BFM7.2/√3-334-1W	7.2/√3	334	61.5	62	630	265	940	170	Fig.1
217	BFM7.2/√3-400-1W	7.2/√3	400	73.7	72	735	300	1045	170	Fig.1
218	BFM7.2/√3-500-1W	7.2/√3	500	92.1	80	820	350	1130	190	Fig.1
219	BFM11/√3-200-1W	11/√3	200	15.8	43	410	110	720	170	Fig.1
220	BFM11/√3-300-1W	11/√3	300	23.7	57	565	235	875	170	Fig.1
221	BFM11/√3-334-1W	11/√3	334	26.4	61	615	265	925	170	Fig.1
222	BFM11/√3-400-1W	11/√3	400	31.6	71	720	300	1030	170	Fig.1
223	BFM11/√3-500-1W	11/√3	500	39.5	87	805	350	1115	190	Fig.1
224	BFM11/√3-600-1W	11/√3	600	47.4	101	945	400	1255	190	Fig.1
225	BFM12/√3-200-1W	12/√3	200	13.26	43	410	110	720	170	Fig.1
226	BFM12/√3-300-1W	12/√3	300	19.9	58	580	235	890	170	Fig.1
227	BFM12/√3-334-1W	12/√3	334	22.2	63	630	265	940	170	Fig.1
228	BFM12/√3-400-1W	12/√3	400	26.5	72	735	300	1045	170	Fig.1
229	BFM12/√3-500-1W	12/√3	500	33.2	89	825	350	1135	190	Fig.1
230	BFM12/√3-600-1W	12/√3	600	39.8	104	970	400	1280	190	Fig.1
231	BFM11/2-334-1W	11/2	334	35.2	64	640	265	950	170	Fig.1
232	BFM11/2-417-1W	11/2	417	43.9	79	720	300	1030	190	Fig.1
233	BFM11/2-500-1W	11/2	500	52.6	91	840	350	1150	190	Fig.1
234	BFM12/2-334-1W	12/2	334	29.5	64	640	265	950	170	Fig.1
235	BFM12/2-417-1W	12/2	417	36.9	79	720	300	1030	190	Fig.1
236	BFM12/2-500-1W	12/2	500	44.2	91	840	350	1150	190	Fig.1
237	BFM11-417-1W	11	417	11.0	79	720	300	1030	190	Fig.1
238	BFM11-500-1W	11	500	13.2	91	840	350	1150	190	Fig.1
239	BFM11-600-1W	11	600	15.8	106	990	400	1300	190	Fig.1
240	BFM12-417-1W	12	417	9.2	79	720	300	1030	190	Fig.1
241	BFM12-500-1W	12	500	11.1	91	840	350	1150	190	Fig.1
242	BFM12-600-1W	12	600	13.3	106	990	400	1300	190	Fig.1
243	BFM3.46-167-1W	3.46	167	44.403	39	505	110	735	140	Fig.2

表二：外熔丝高压并联电容器

Table 2：Externally fused for high voltage shunt capacitor

序号 ID	型号 Model	额定电压 Rated voltage （kV）	额定容量 Rated Output （kvar)	额定电容 Rated Capacitance （μF)	重量 Weight （kg)	H1 (mm)	H2 (mm)	H3 (mm)	W (mm)	图号 No. of dimensional drawing
501	BAM11/√3-100-1W	11/√3	100	7.9	28	310	110	620	140	Fig.2
502	BAM11/√3-200-1W	11/√3	200	15.8	44	425	110	735	170	Fig.1
503	BAM11/√3-300-1W	11/√3	300	23.7	59	590	235	900	170	Fig.1
504	BAM12/√3-100-1W	12/√3	100	6.6	28	310	110	620	140	Fig.2
505	BAM12/√3-200-1W	12/√3	200	13.3	44	425	110	735	170	Fig.1
506	BAM12/√3-300-1W	12/√3	300	19.9	59	590	235	900	170	Fig.1
507	BAM11-100-1W	11	100	2.6	28	310	110	620	140	Fig.2
508	BAM11-200-1W	11	200	5.3	44	425	110	735	170	Fig.1
509	BAM11-300-1W	11	300	7.9	59	590	235	900	170	Fig.1
510	BAM12-100-1W	12	100	2.2	28	310	110	620	140	Fig.2
511	BAM12-200-1W	12	200	4.4	44	425	110	735	170	Fig.1
512	BAM12-300-1W	12	300	6.6	59	590	235	900	170	Fig.1

序号 ID	型号 Model	额定电压 Rated voltage （kV）	额定容量 Rated Output （kvar)	额定电容 Rated Capacitance （μF)	重量 Weight （kg)	H1 (mm)	H2 (mm)	H3 (mm)	W (mm)	图号 No. of dimensional drawing
701	BFM11/√3-100-1W	11/√3	100	7.9	28	310	110	620	140	Fig.2
702	BFM11/√3-200-1W	11/√3	200	15.8	44	425	110	735	170	Fig.1
703	BFM11/√3-300-1W	11/√3	300	23.7	59	590	235	900	170	Fig.1
704	BFM12/√3-100-1W	12/√3	100	6.6	28	310	110	620	140	Fig.2
705	BFM12/√3-200-1W	12/√3	200	13.3	44	425	110	735	170	Fig.1
706	BFM12/√3-300-1W	12/√3	300	19.9	59	590	235	900	170	Fig.1
707	BFM11-100-1W	11	100	2.6	28	310	110	620	140	Fig.2
708	BFM11-200-1W	11	200	5.3	44	425	110	735	170	Fig.1
709	BFM11-300-1W	11	300	7.9	59	590	235	900	170	Fig.1
710	BFM12-100-1W	12	100	2.2	28	310	110	620	140	Fig.2
711	BFM12-200-1W	12	200	4.4	44	425	110	735	170	Fig.1
712	BFM12-300-1W	12	300	6.6	59	590	235	900	170	Fig.1

附：1、B系列内熔丝高压并联电容器见（表一）

2、B系列外熔丝高压并联电容器见（表二）

3、B系列高压并联电容器外型尺寸见（图一、图二）

Appendix：1、Internally fused for high voltage shunt capacitor of B series, see table 1.

2、Externally fused for high voltage shunt capacitor of B series, see table 2.

3、Dimensions of high voltage shunt capacitor of B series, see table 1 and table 2.

注：1、由于技术发展和结构改进，表内尺寸可能与实际不符，请以实际供货尺寸为准；

2、如果对上表之型号规格以及外形尺寸有特殊要求，可以根据用户需求协商定制。

Note: 1、Because of the improvement of technology and development of structure, the size in the table above may be inconsistent with the actual one. Please subject to the size of the actual products.

2、If there are special requirements on the type specification or size，we can consult for customization which is based on customer needs.
